Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified

Place of Origin : China

Material : Steel

Name : flush container foundation

Finish : Shop primer

M.B.L.Tension : 500 KN

M.B.L.Shear : 420KN

M.B.L.Compression : 2000KN

Weight of transversal : 17.5/18.5/20.5kgs

Weight of longitudinal : 21.50kgs

Single Type : 7.50kgs

Application : Vessel Lashing

MOQ : 1 pieces

Price : $60.00/pieces 10-49 pieces

Delivery Time : within 30 days

Contact Now

Hot Sale Products
Product Description

Container Securing (It is all about cargo and people safety.)

Shipping container is a weak box loaded with heavy cargo inside and above. The mass of the cargo is accelerated by the six types of movement of a ship in response to sea conditions and by additional forces from wind and green seas. To handle these forces, and to secure the valuable cargo, containers need to be further stabilised and secured by lashing equipment.
ACE is a professional supplier, we provide verious of lashing Equipment for Container Ship. Also provide lashing equipment for Bulk Cargo Ship and Ro-Ro ship. Please contact our sales to get professional guide.
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified

1.1 General introductions:

In the container industry, cycle time for loading and unloading containers is the most imortant criterion.Innovative container securing systems provided by ACE ami specifically at enhancing productivity and safty, both on the vessel and at container terminals.
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified

Real Picture Display

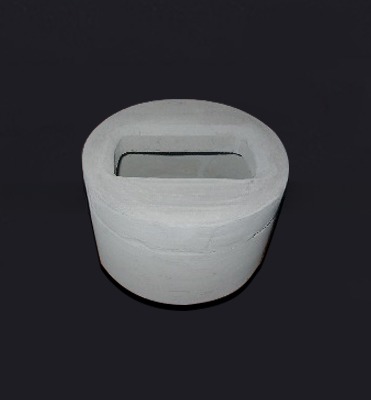

Raised Socket
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified

Flush container foundation:

Double Raised Socket
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Flush Socket
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Flush Socket
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Twistlock Socket
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Twistlock Socket
1.3 Detailed drawings
Product Datasheet

1.2 Specifications - Flush container foundation:

With GL CCS Approval
Specifications:
Type:
Single
Double
(Transversal & longitudinal)
Quadruple
Weight:
7.3kgs
17.5/18.5/20.5kgs
42.3/45.8kgs
Material:
Ship Building Steel
Surface Treatment:
Painted
Min Breaking Loads
Tension
500KN
Shear
420KN
Compression
2000KN
Packing & Shipment
100 -200pcs container flush foundation per plywood box as below:
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Company Profile
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
Container ISO Twistlock Socket Flush Foundations with 7.50kgs Single Type and 500 KN M.B.L.Tension Capacity DNV GL Certified
FAQ
5.1. Are your lashing equipment certified by any Classification Society?
Yes, all of our lashing equipment are certified by KR or GL.

5.2 How about surface Treatment?
Shop primer

5.3 Can i order mixed items?
Yes, you could choose the lashing parts as per your requirement.

5.4 what is your delivery date?
Generally it's in stock if quantity is not too much.

5.5 What is your payment term?
40% TT in advance, the balance paid before delivery or against the copy of BL.
